D6™ Laser Detector

Single Sensor with Optical Communications

The D6™ laser warning system enhances safety and survivability in today’s battlefield environment by notifying its wearer of any commercial or military targeting laser emissions. A unique wide-band receiver (750 nm to 1700 nm) detect laser signals in a 120° cone and provides command feedback to its wearer. Laser warnings are integrated with ATAK/CIVTAK or other equipment via USB-C. False detections are minimized while maintaining an ultra-fast response time of less than 50 milliseconds. The D6™ system can be worn anywhere on top/side of a helmet. D6™ can also be used as a laser warning system as a part of ground robotics or vehicle platforms as well as bottom mounted on a UAV. The built-in optical communication capability allows D6™ be used as a remote receiver that can trigger variety of events depending on user needs.

Specifications

Detection Range
up to 1 km for commercial LRF;
up to 2 km for military LRF;
up to 10 km with TPL DL1
Field-of-View
120° Az and El
Frequency Range Detection
750 nm to 1700 nm
Detection Notification
USB C port 5V
Power
USB C port 5V
Size
64 x 42 x 16 mm
Weight
26 g
Mounting
Multiple adapters and mounting screws
Communication
Receive only, optical communication, various formats up to 1 GHz

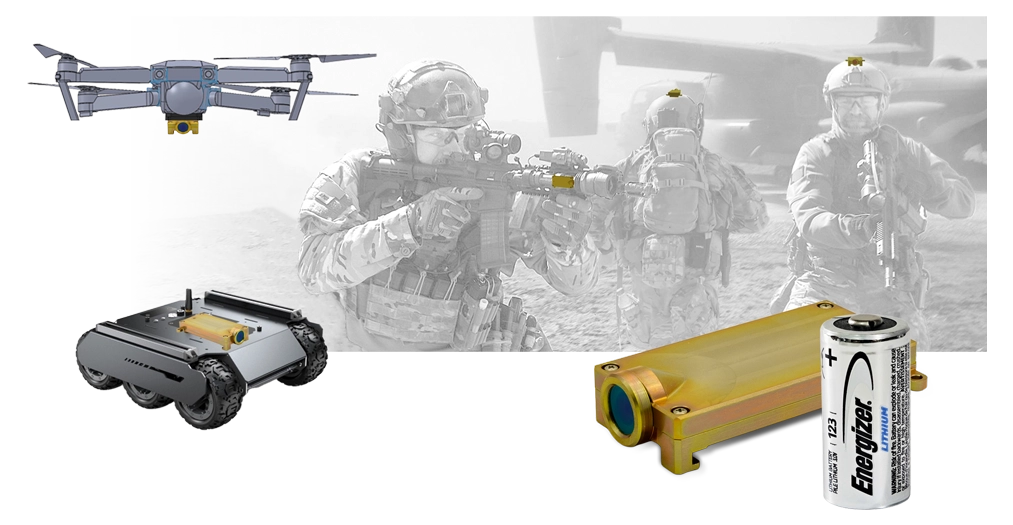

Main picture of the D6
