Lightspeed™ AN/PAQ-6 v2

     Phone & Distance Line Replacement (6-PAQ)

    • NAVY Operational Logistics Integration (OPLOG) Program

    • Replacement of legacy Phone and Distance Line (PDL) system during Underway Replenishment (UNREP) with LightSpeed™ technology

    • Non-RF silent communication during approach and UNREP– 6-PAQ transceiver units use eye-safe IR LEDs

    • Each unit communicates over a horizontal 180° and vertical 60° Field-of-View

    • System will provide up to 10 digital phone lines, Ethernet link and precise distance measurement capabilities

    • Secure Voice and data communications: Bridge-to-Bridge and Station-to-Station without RF

    • System demonstrated distance measurement and voice communications between RHIBs operating at various speeds

    • System capable of passing any information (including tactical) in any format (open source) from ship (any size) to shore to mobile

    • No Moving Parts!

    Specifications
    Communication Range
    500 m
    Field-of-View
    120°
    System Size
    13.4 x 4.75 x 6.7 in
    System Weight
    6 lbs
    Display Size
    4 x 5 x 12 in
    Mounting
    Tripod or Rail clamp or Magnetic mounts
    Operating Temperature
    30° C to +70° C
    Storage Temperature
    -40° C to +80° C
    Interface
    Ethernet for LAN and WAN connectivity, Analog voice
    Optional Devices
    Digital voice; Network cameras; other modules

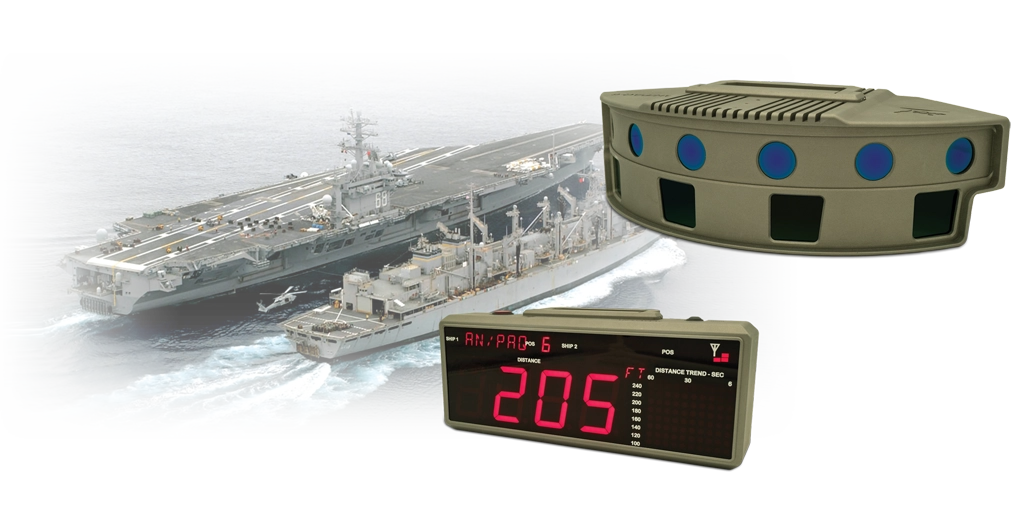

    AN/PAQ-6 v2 main picture
