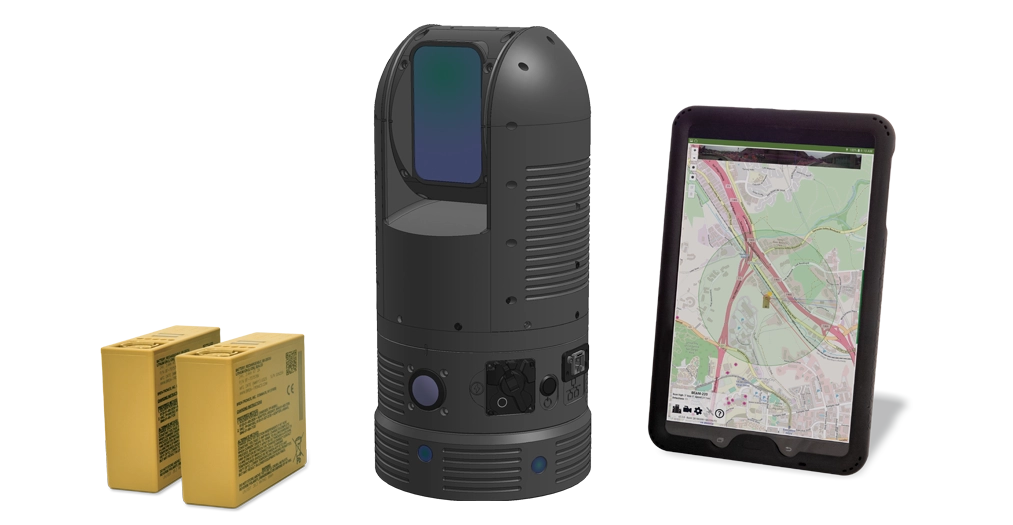

Lightspeed™ R4

Auto-Connection Free-Space Optical Communications

Introducing the Auto-Connection FSO system

Compact, high-speed Free-Space Optical (FS0) Transceiver gimbals designed for challenging non-RF environments.

Engineered for mission-critical performance, LightSpeed™ R4 offers covert, wireless, high-bandwidth optical communication at distances exceeding 3km. Designed for seamless integration into defense platforms, these gimbal enable secure, self-erecting, interference-free links – without reliance on congested or compromised RF spectrum.

  • 3km+ Tactical LOS Non-RF Comms:Reliable performance in rural, industrial, or urban environments. Ideal for asset to FOB, base-to vehicle, UAV, or deployed sensor backhauls.
  • Operational Flexibility: Works in RF-denied, GPS compromised, and spectrum-contested environments
  • Hard-to-Intercept Optical Link: Inherent LPI/LPD– No RF emissions, virtually immune to jamming
  • Integration-Ready: Compact form factor, modular interface, and plug-and-play interface means they’re up instantly.
  • Low Power, High Performance: Optimized for the absolute minimum power consumption possible; embedded and mobile platforms.
Whether deployed in field operations, perimeter surveillance, building smart infrastructure, or nextgen communications platforms, the LightSpeed™ R4 Transceiver Gimbal enable secure low-power data connections in congested environments; empowering defense systems with next-gen, fiber-class connections minus the wire, minus the risk.

Specifications

Communication
Voice, Data
Operating Range
3 km+
Data Speed
1-20 Mpbs
Frequency
Vis/NIR/SWIR or custom
Data Interface
Ethernet
Power Consumption
15 W
Power Supply
Up to 2 batteries with hot swap; 2590/U battery for 24+ hours of operation or 2557/U for 10+ hours of operation
Weight
8 lbs
Size
5.8 x 5.8 x 10.5 in
Operating Temperature
-20 to +50 C
The R4 is designed for seamless integration into defense platforms. the gimbal enables secure, self-erecting, interference-free links without reliance on congested or compromised RF spectrum.

Downloads
