D3™ Laser Detector

Personal/Drone Hemispheric Laser Warning

The D3™ laser warning system enhances safety and survivability in today’s battlefield environment by notifying its wearer of any commercial or military targeting laser emissions. Four unique wide-band detectors (750 nm to 1700 nm) detect laser signals in a 360 Az by 120 El degree field and selectable audio, visual, and/or tactile feedback notify the wearer of a detection. Laser warnings can be easily integrated with ATAK or other equipment via USB-C. False detections are minimized while maintaining an ultra-fast response time of less than 50 milliseconds. The D3™ system can be worn anywhere on the body; typically, on the chest or back or on top of a helmet. D3™ can also be used as a laser warning system on top of ground robotics or vehicle platforms as well as bottom mounted on a UAV.

Previous slide
Next slide

Specifications

Detection Range
up to 1 km for commercial LRF; up to 2 km for military LRF
Field-of-View
360° horizontal (Az) and 120° vertical (El)
Frequency Range Detection
750 nm to 1700 nm
Detection Direction
Segments in Az direction
Detection Notification
USB C port
Power
USB C port 5V
Size
79 x 53 x 26 mm
Weight
62 g
Mounting
Velcro strap to helmet, or mounting screws

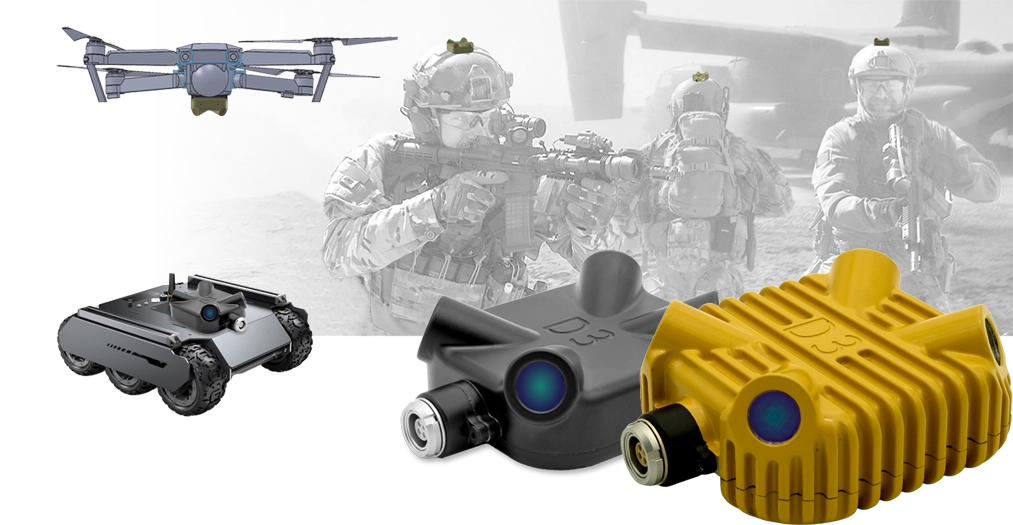

D3 main picture
