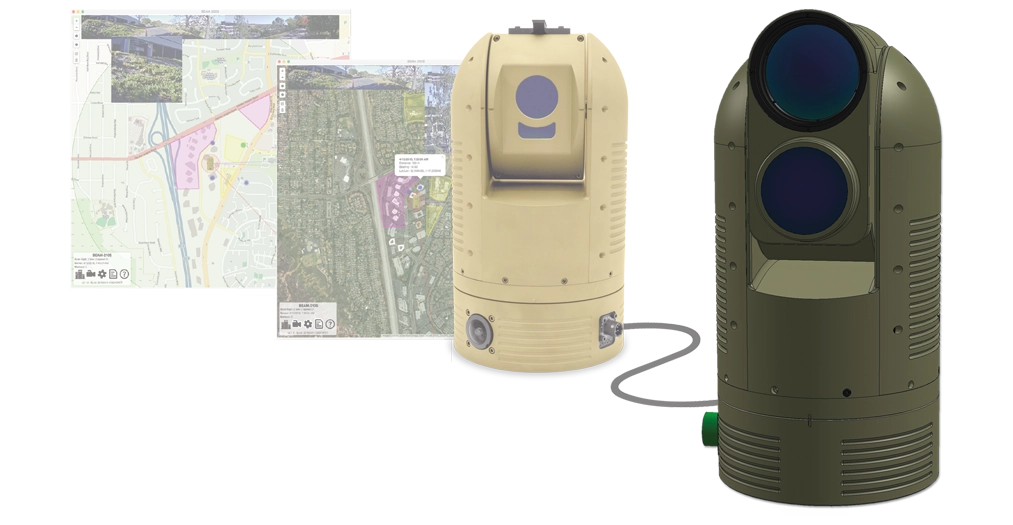

Campanile™ 33
Next Generation Optical Detection System
Campanile™ 33 is an optional target investigation system to Beam™ 30. Campanile™ has multiple electro-optic sensors allowing the operator to recognize and identify targets found by the Beam™ and to make effective decisions quickly. Campanile™ can provide variety of EO/IR custom made payloads with the following capabilities.
- Unique EO/IR cameras with Continuous Optical Zoom
- Excellent performance with Image Enhancement features
- Full integration with Beam™ control software to quickly track targets
- Variety of sensors can be utilized in custom made payloads, including:
– Daylight/nighttime color 4K cameras
– Cooled or uncooled thermal imaging cameras with a line of lenses
– Laser pointer - Remote control over Ethernet LAN or WAN
- Full recording capabilities
Specifications
Sensors | E/O HD sensors w/zoom, optional thermal sensors |
Field-of-View | 360° in azimuth and -30°/+90° in elevation w/ zoom |
Sensor Size | 5.8 x 5.8 x 11.5 in |
Sensor Weight | 10 lbs |
Backpack Weight | 20 lbs w/ all accessories |
Optical Sensors | Variety of thermal sensors |
Mounting | Tripod included |
Power Supply | Up to 2 batteries with hot swap; 2590/U battery for 6 hrs of operation or 2557/U for 2 hrs of operation |
Operating Temperature | 5° C to +50° C |
Storage Temperature | -20° C to +60° C |
Interface | Ethernet for LAN and WAN connectivity |
Control | Direct control from Beam™ interface |
