Beam™ 50

    • Automatic 360° scanning
    • Accurate and reliable UAS detection
    • Up to 20 simultaneous targets
    • All-weather 24-hour surveillance
    System Features
    • Geo-location of targets with GPS
    • HTML5 interface for local and remote control
    • Optional Campanile EO/IR slave
    • Dual battery hot-swap supported
    • Full ATAK/CIVTAK 5.0 and up support

    Specifications
    Detection Range*
    up to 1 km
    Measurement Accuracy
    2 m
    Optical Field-of-View
    Continuous scanning 360° in azimuth and -30°/+90° in elevation
    Radar Field-of-View
    120° in azimuth and 80° in elevation
    Sensor Size
    10 x 6 x 20 in
    Sensor Weight
    20 lbs
    Backpack Weight
    350 lbs
    Optical Sensors
    EO, IR Campanile™ system
    Mounting
    Tripod included
    Power Supply
    Up to 2 batteries with hot swap;
    2590/U battery (2) for 4 hours of operation
    Operating Temperature
    5° C to +50° C
    Storage Temperature
    -10° C to +55° C
    Panoramic Camera
    Full video
    Target Information
    GPS coordinates of all targets are shown on map and stored
    Interface
    Ethernet for LAN and WAN connectivity

    *Minimum and maximum ranges vary based on operating environment. Ray performance depends on environmental conditions, such as atmosphere transparency (fog, dust level, smoke content), atmospheric precipitation (rain, snow), ascendant heat flows, luminosity of light background, light conditions, as well as characteristics of the target optical device.

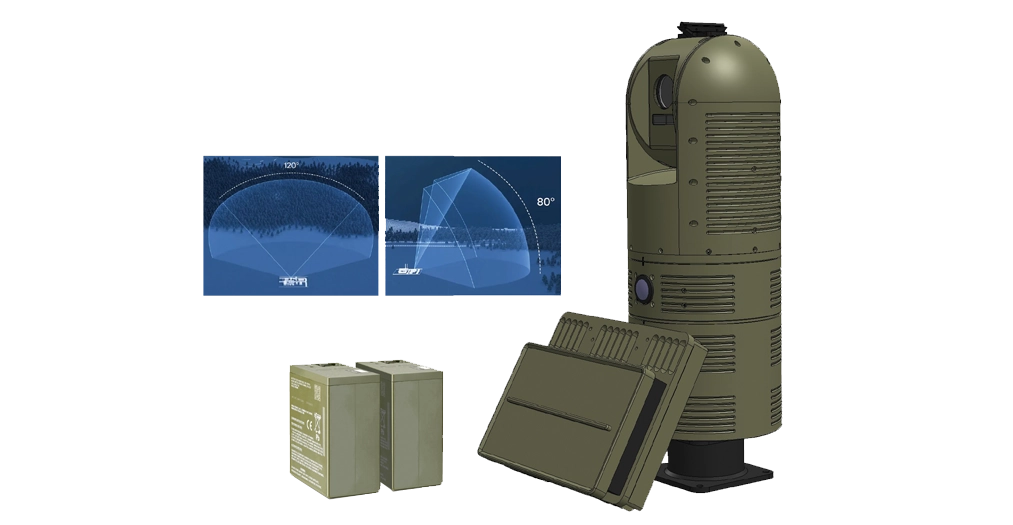

    Beam 50 main picture

    Downloads

    brochure download
